PHILL WOOD Philcentric Outboard Bottom Bracket
PHILL WOOD Philcentric Outboard Bottom Bracket
Couldn't load pickup availability
Collect In Store
Collect In Store
Our dealer agreements prevent us from shipping most bikes. Shipping for extra bulky items may be invoiced separately. Please read our shipping policy or contact us for more info.

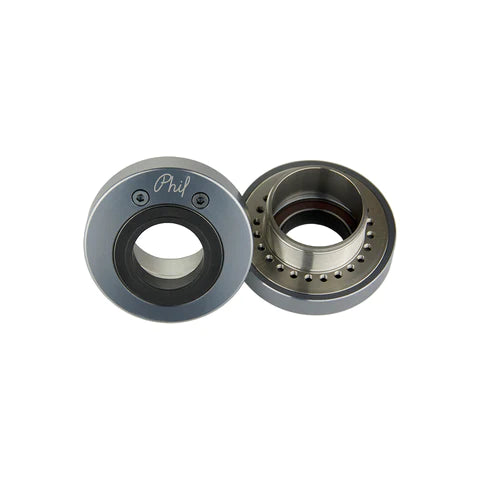

The Philcentric is an Outboard Bottom Bracket that gives you eccentricity without using horizontal dropouts, an eccentric hub, or chain tensioners. You may be required to use a half link. If you need to order replacement dust cover please note that the Philcentric uses our medium dust covers.
Please note: All Philcentric Outboard Bottom Bracket cups require the Phil Wood Philcentric installation tool and alignment gage. It is recommended that you go to a bicycle shop familiar with the installation and adjustment of this part.
| SPECIFICATIONS | |
|---|---|
| Cup material | Stainless Steel |
| Cup cover material | 7075 Aluminum |
| Dust cover material | ABS plastic (Shimano), 7075 Aluminum (SRAM/GXP Adaptor) |
| Spacing | 68 mm - 100 mm |
| Bearing availability | 6805 (Standard), 6805 (Carbonyte) |
| OBB weight | 207 grams |
| Rider and bike weight limit | 280 lbs / 127 kgs |
| Materials | All of our manufactured items are machined out of US-produced materials. |
